Sawdust Pellet

The KMPM series ring die pellet mill has been improved its deign and main parts aim at sawdust material characteristics as common but also variable in plant species. Compress ratio is key index which directly affects the production capacity, and quality of finished sawdust pellets.

sawdust sawdust pellets
Sawdust Sawdust Pellets

For the clients collect sawdust material, normally the hardness is un-determined and the size is also different so we should help to recommend normal compression ratio to reach regular production, and then test the most appropriate ratio for supplying of ring die and roller assembly. Or single sawdust pellet mill. After complete above mentioned procedures, we could help clients to reach target production capacity with lowest cost.

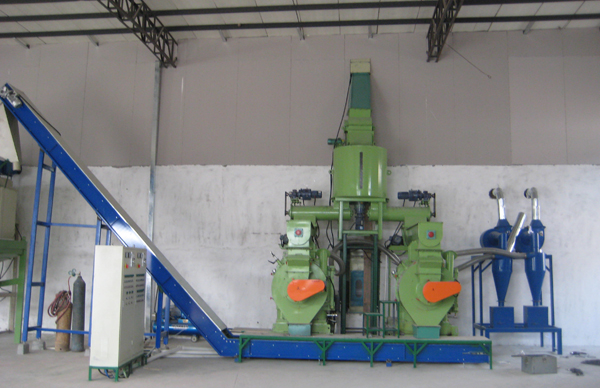

Ring Die Sawdust Pellets Mill Production Line

ring die sawdust pellets mill production line

sawdust pellets production line

Model Power (kw) Packing Size (mm) Net Weight (Kg) Capacity (Ton/Hr)
KMPM420 Main Motor 90 2000*1100*2600 3T 1.2~1.5/1.5~2.0
Feeding Machine 1.1
Conditioner Motor 2.2
NPM 508 Main Motor 110 2000*1200*2700 3.7T 1.5~1.8/2.0~2.5
Feeding Machine 1.5
Conditioner Motor 2.2
